The site analysis portion was completed as a class, but the design process was completed individually. This design showcased the various ways that aluminum can be used to connect the biking community and the beer community through abstract bike chains and oversized aluminum cans. Due to the taller buildings surrounding the site, lighting was essential. Sustainable design elements led the way in this fun and artistic plan, incorporating the required storage for 80 bicycles.

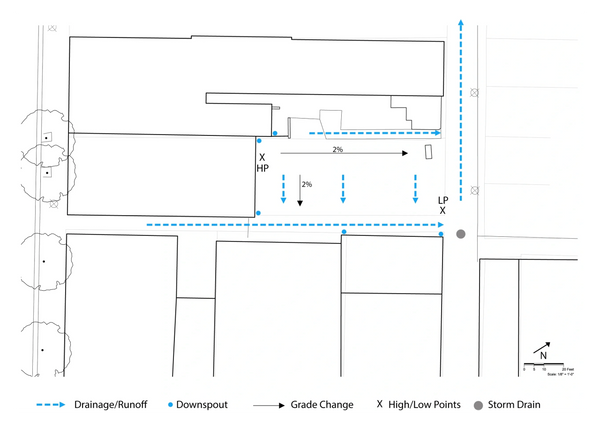

Topography and drainage analysis of the site

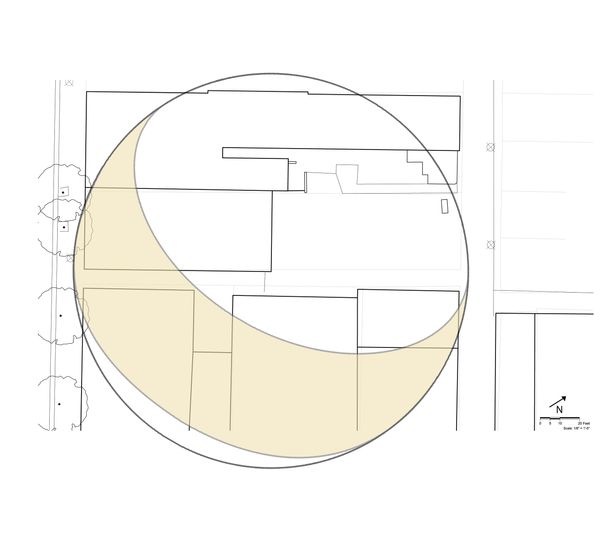

Solar analysis for the site

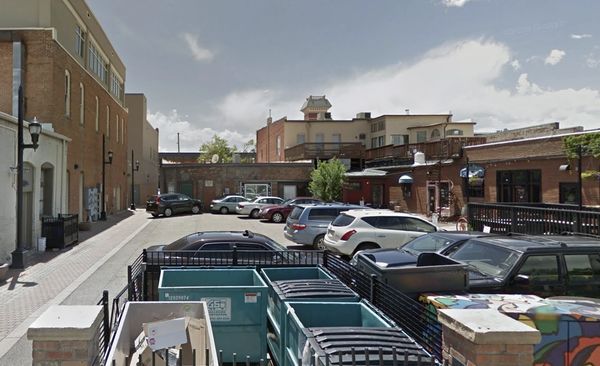

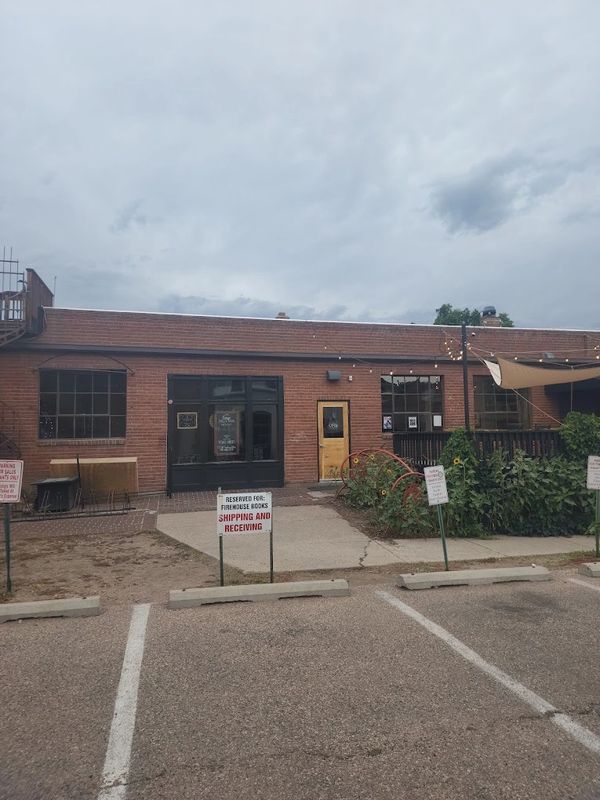

Site photo

Site photo

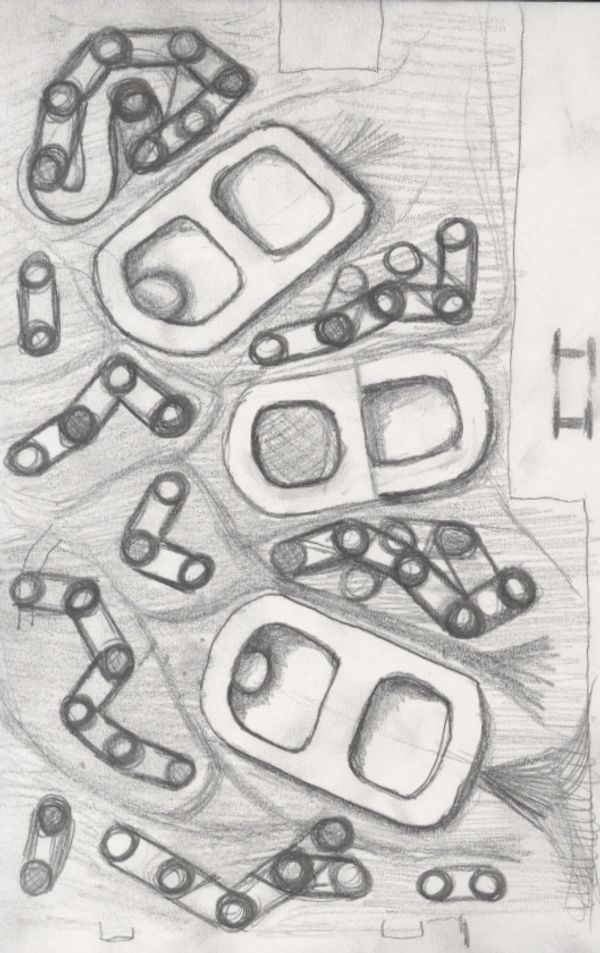

Early design concept, working out bench placement, shelter placement, and circulation.

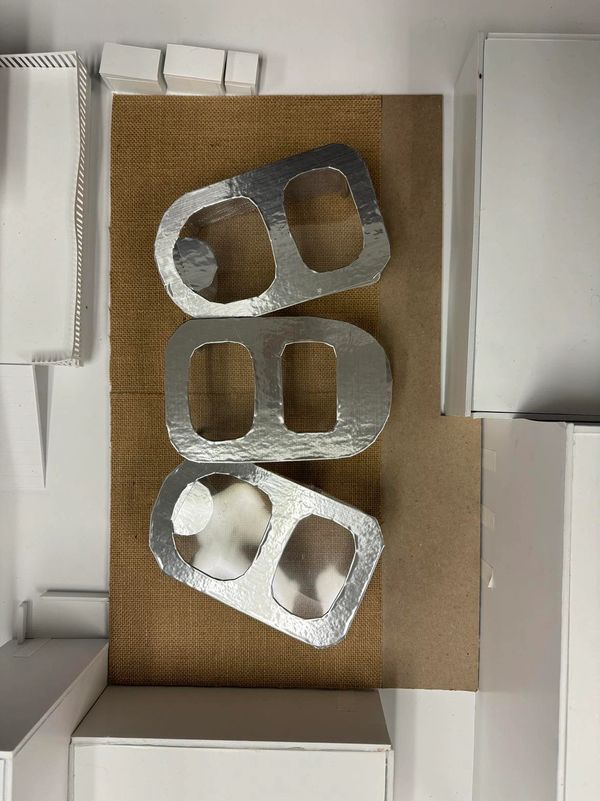

Early model; plan view of 'pop tab' bike shelters.

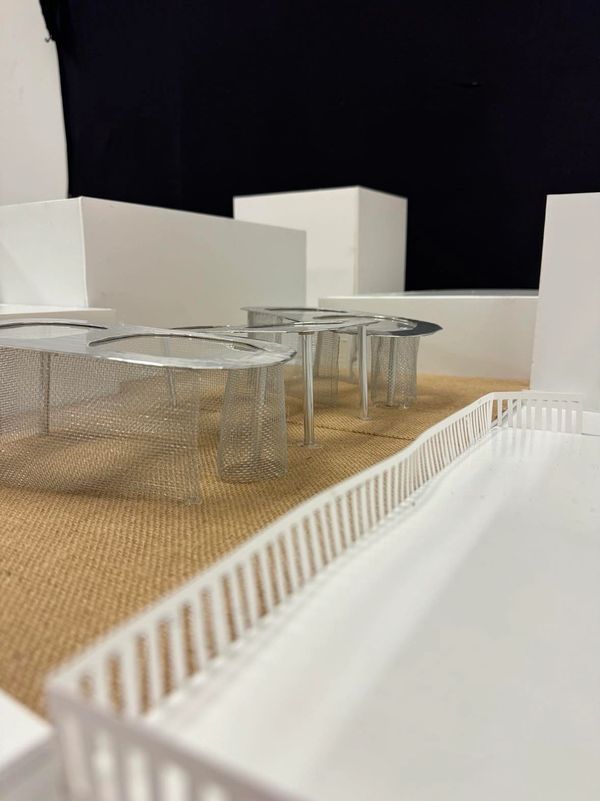

Early model; perspective view, highlighting angled shelter roofs and shelter height.

Sketchup rendering of site, used for final perspective

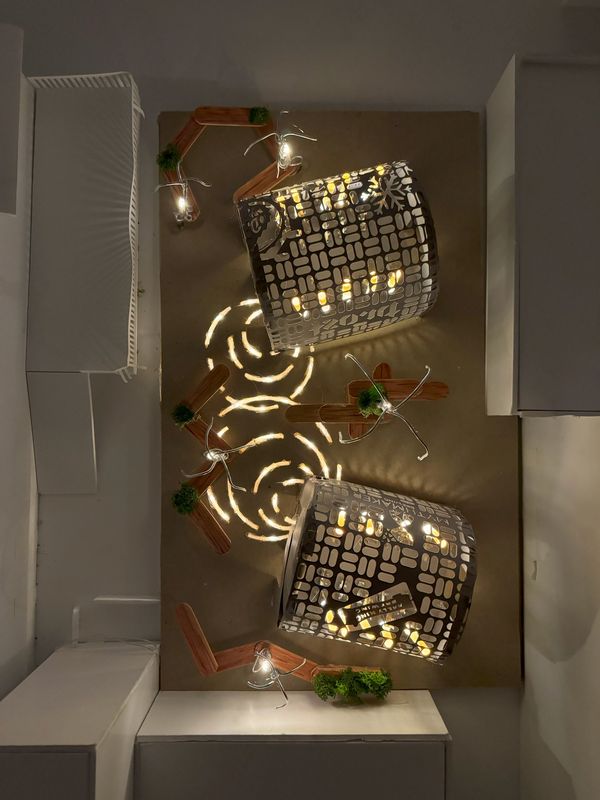

Overhead view of the final model, illuminated

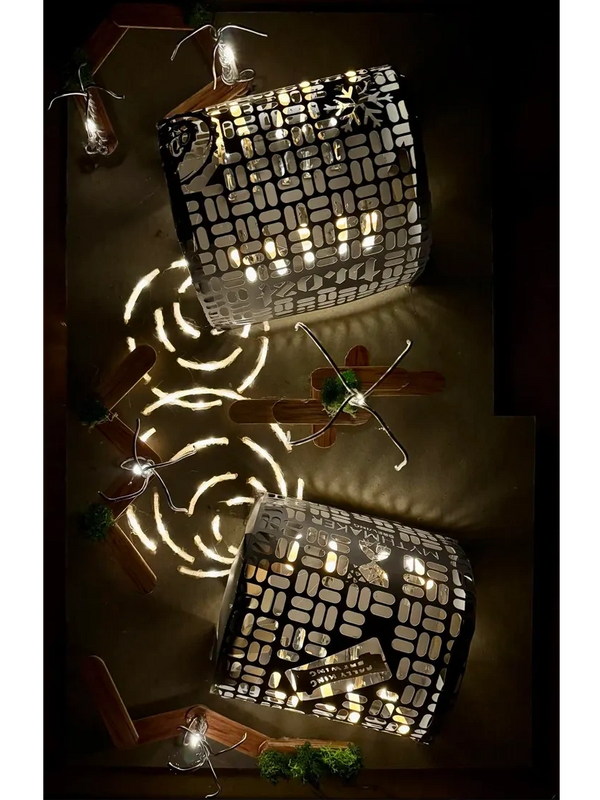

Close-up of final model
